While much of the work happening inside the exclusion zone isn’t visible from the outside, there’s been a lot of complex and technical progress made.

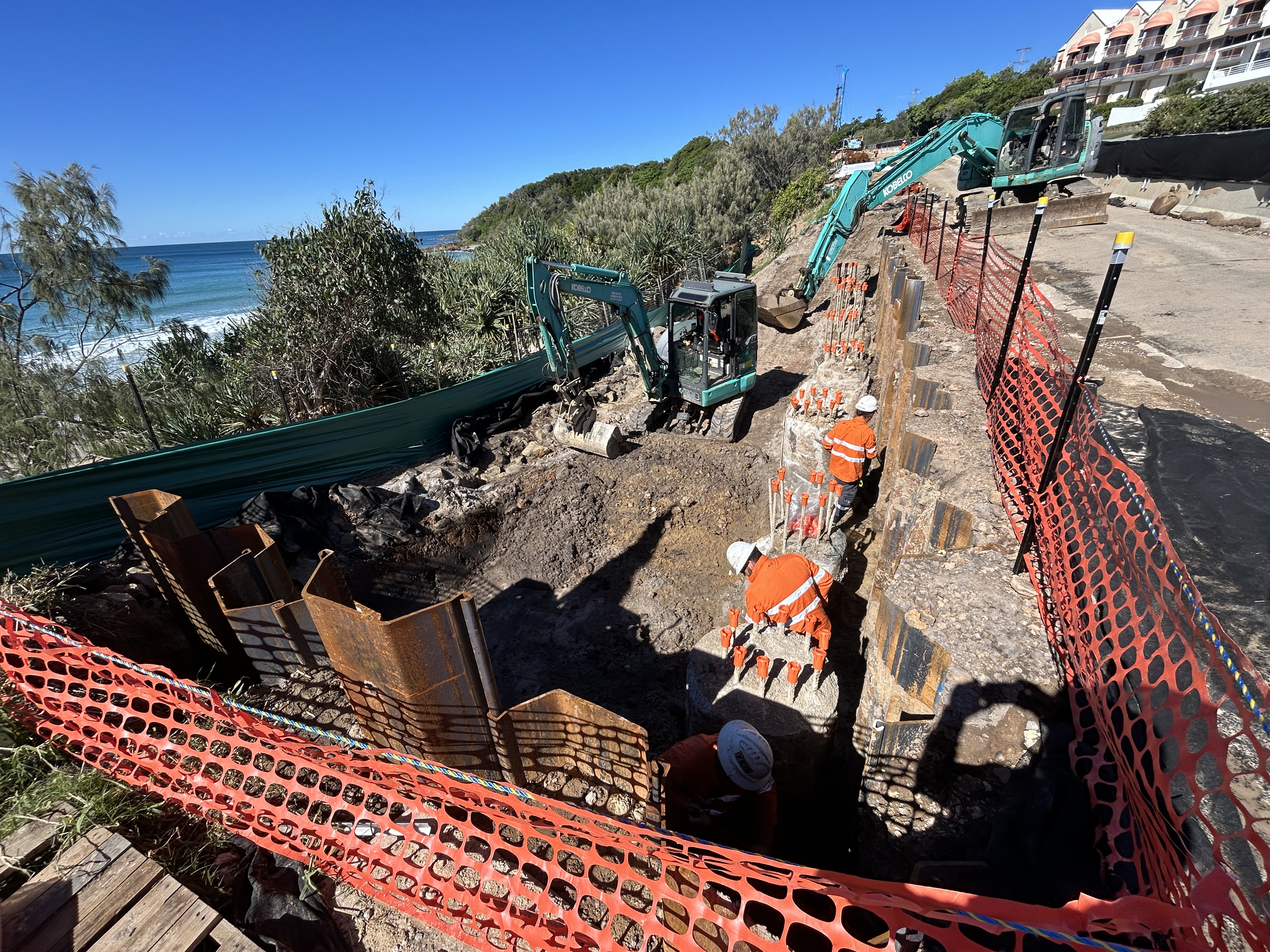

So far, around 65 metres of sheet piles have been installed. These are essential for safely digging out sections where we can build the concrete caps that sit on top of the foundation piles.

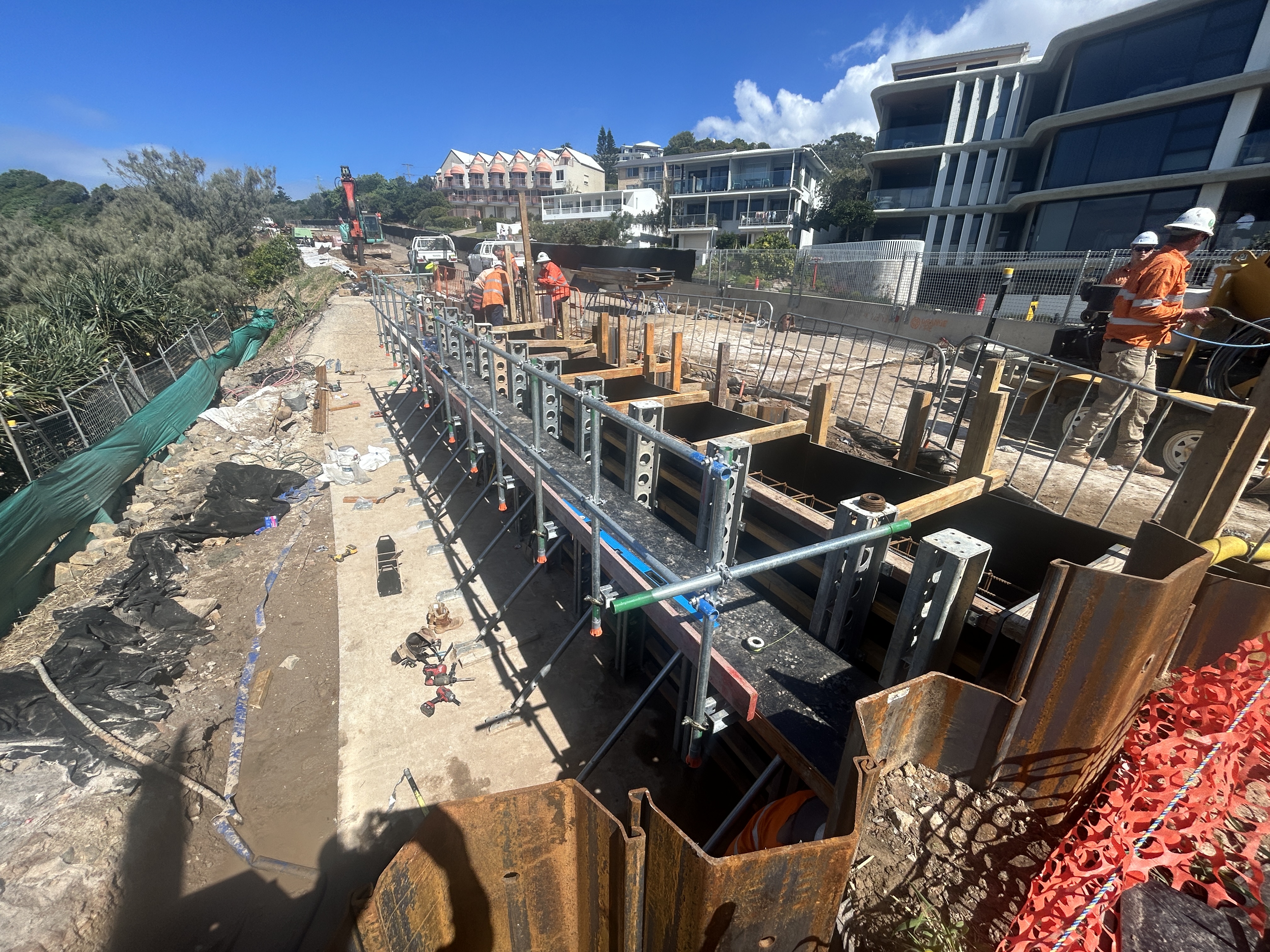

This process involves several steps: digging, installing soil nails (which help stabilise the ground), setting up formwork (the moulds for concrete), placing steel reinforcements, and finally pouring the concrete.
In total, 93 foundation piles have now been installed, each reaching approximately 18 metres deep into the ground.

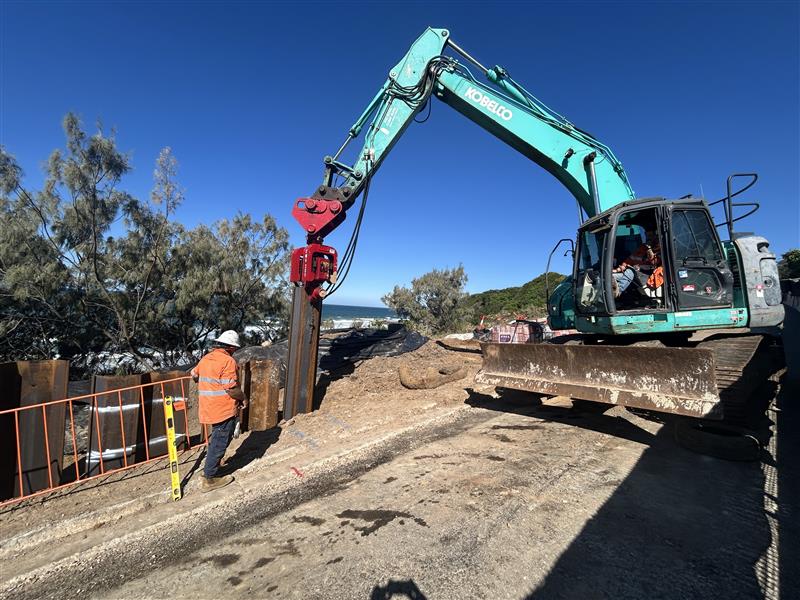

One of the more challenging parts of the job has been the deep excavations needed for pile capping - some as deep as 3 metres. To make this possible, sheet piles had to be driven even deeper - 6 to 8 metres - through tough ground conditions.
Workers have had to navigate through layers of cobble, boulders and stiff clay with ironstone, which has slowed things down but is essential for long-term stability.
|
